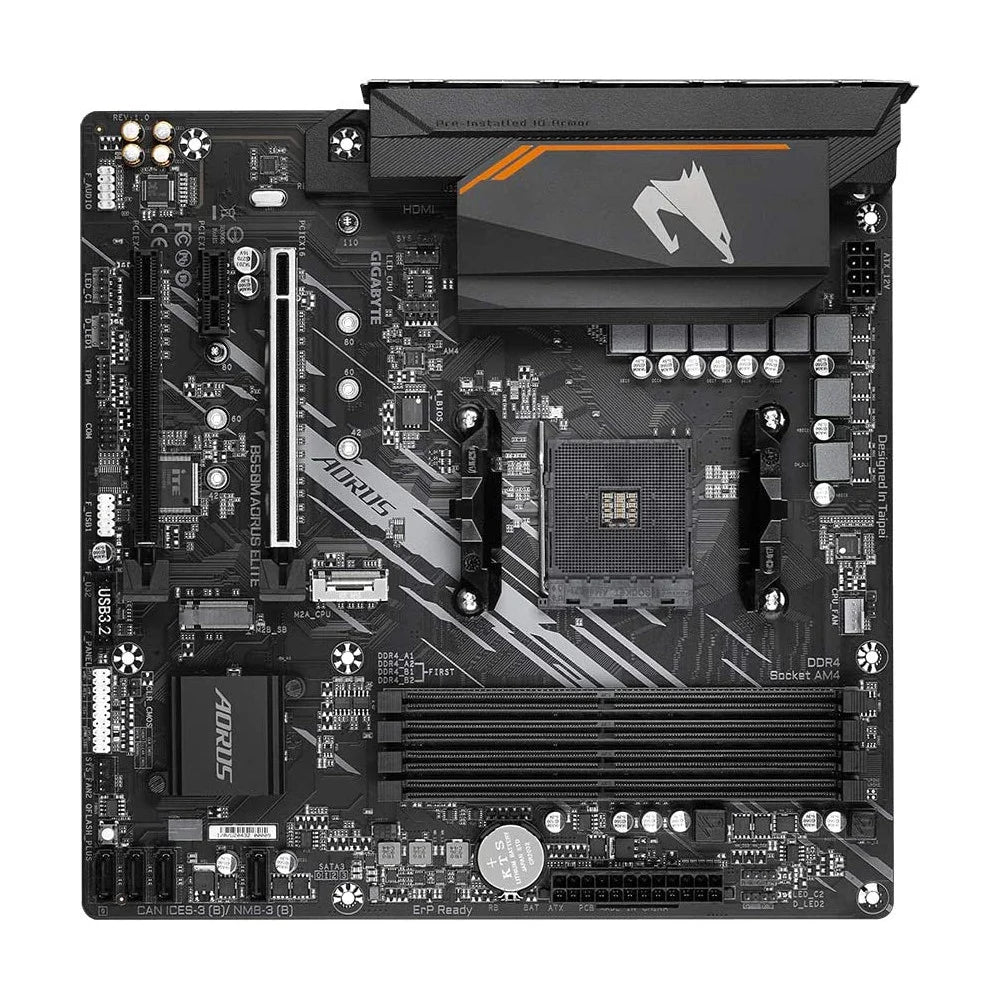

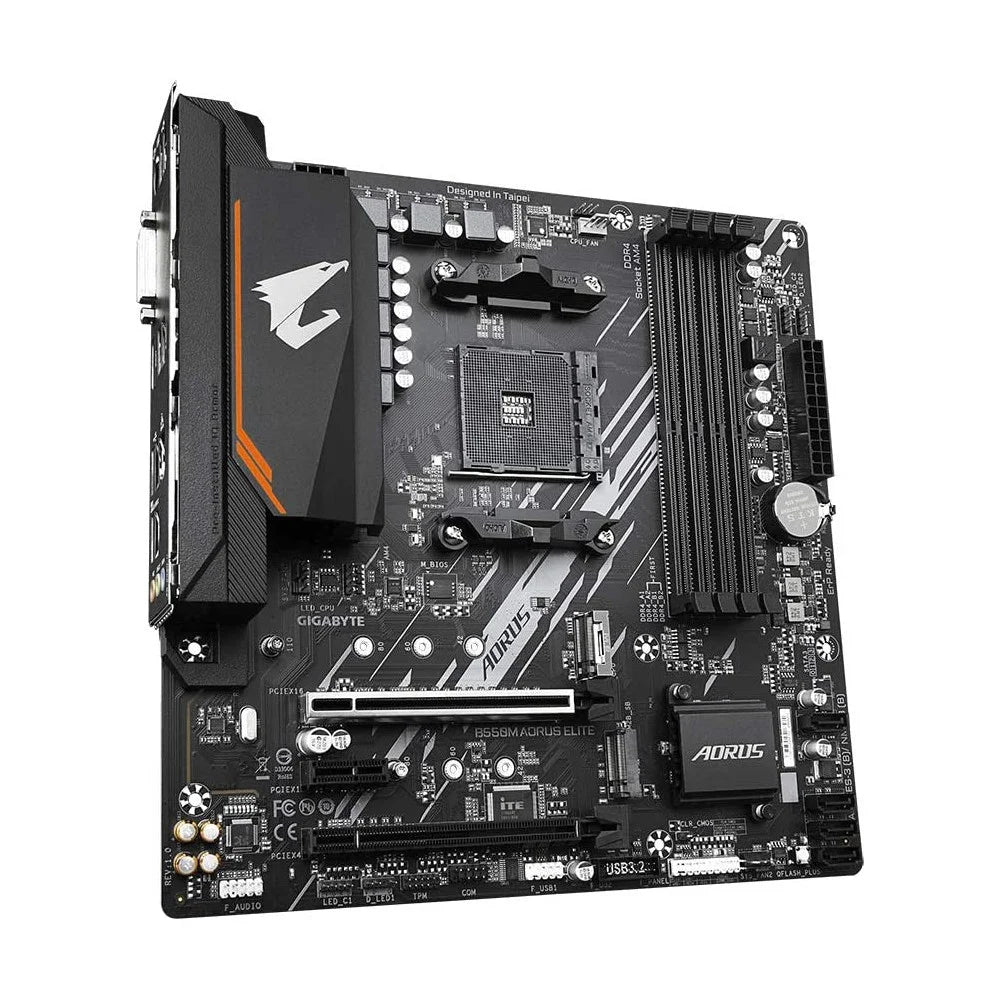

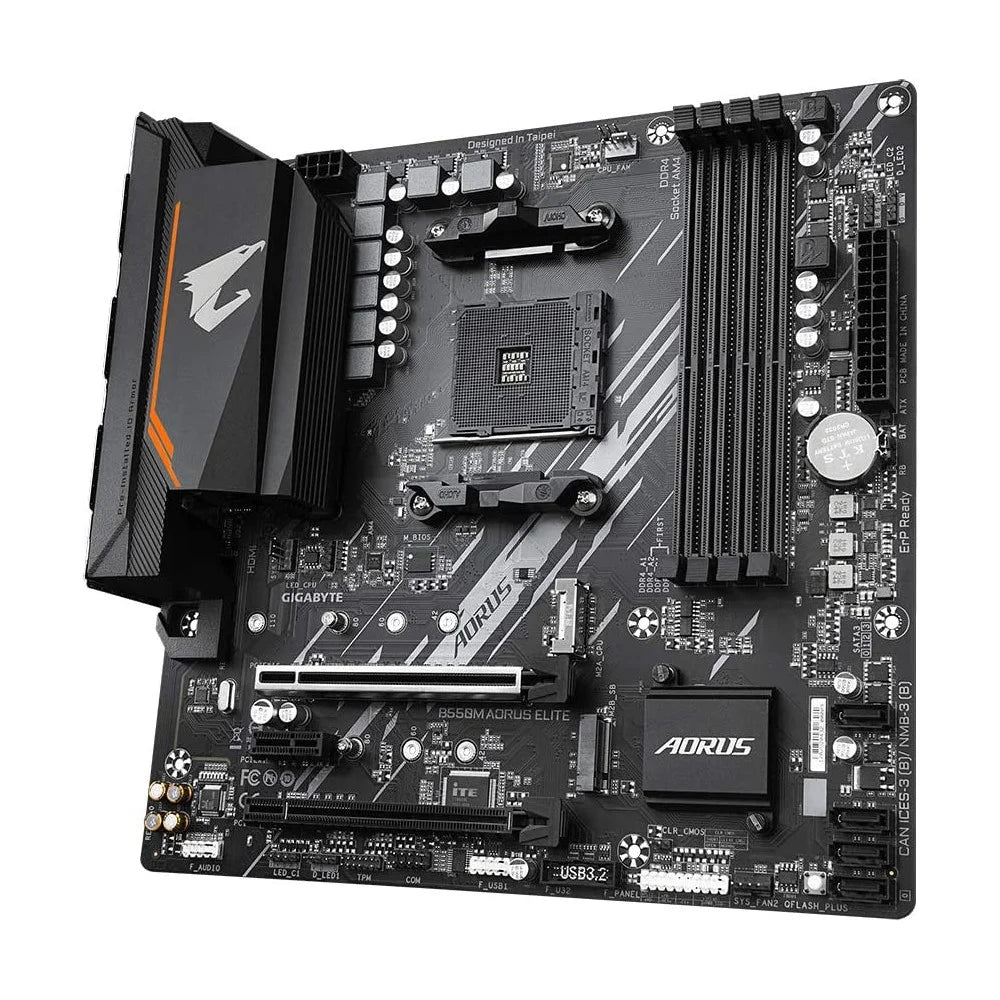

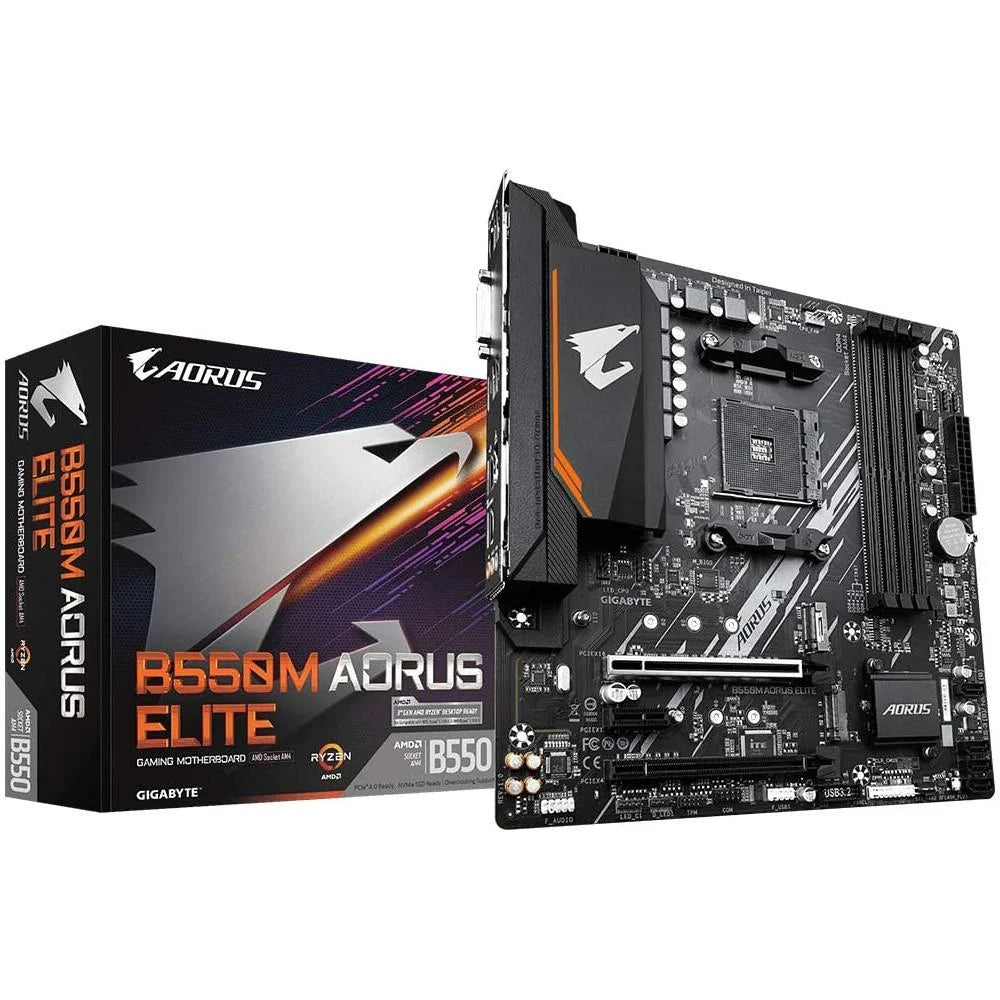

Placa mãe gigabyte B550M já instalada e configurada

Montagem:

🧑💻 Se seu Pc já está em uso! 🆙

🚨 Nesse caso, recomendamos trazer a máquina até nossa loja para verificarmos se ele está em condições de receber um novo Hardware sem a necessidade de uma manutenção preventiva! 🧴🧽

💸 Fazemos isso para evitar que você tenha um prejuízo enorme, colocando um novo Hardware no Pc com poeira, isso pode danificar o novo Hardware como os hardweres que estão em uso! 💳

📉 Falamos isso com base na experiência negativa de usuários que ignoraram essa simples observação e acabou instalando um novo Hardware com as outras peças sujas, se tudo funcionar bem, vai sobrecarregar outras peças e a curto prazo vai danificar, ou pior, causar outros danos irreversíveis e ficar muito caro. ❌💰❌

Como somos assistência técnica especializada, temos o dever e a obrigação de te dar essas informações, por isso tomamos toda responsabilidade para fazer a instalação e configuração e te entregar o novo hardwere junto ao Pc 100%.

•     CPU



  1.      AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

  (Please refer "CPU Support List" for more information.)

  ·        Chipset



  1.      AMD B550

  ·        Memória



  1.      2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

  2.      Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

  3.      Dual channel memory architecture

  4.      Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
  * ECC memory (ECC mode) support varies by CPU

  5.      Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  6.      Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)

  ·        Gráficos Onboard

  ·        Integrated Graphics Processor with AMD Radeon™ Graphics support:

  1.      1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
  * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

  2.      2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

  Support for up to 3 displays at the same time
  Maximum shared memory of 16 GB

  ·        Áudio



  1.      Realtek^® ALC1220-VB codec
  * The back panel line out jack supports DSD audio.

  2.      High Definition Audio

  3.      2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

  ·        LAN



  1.      Realtek^® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

  ·        Wireless Communication module

  ·        Realtek® Wi-Fi 6E RTL8852CE

  1.      WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

  2.      BLUETOOTH 5.3

  3.      Support for 11ax 160MHz wireless standard

  * Actual data rate may vary depending on environment and equipment.

  ·        Slots de Expansão

  ·        1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

  1.      AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode
  * Actual support may vary by AMD CPU's specification.

  2.      AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode

  ·        Interface de Armazenamento



  1.      1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280/2260 SSDs:
  - AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
  - AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

  2.      1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2280/2260 SSDs:
  - Supporting SATA and PCIe 3.0 x4/x2 SSDs

  3.      4 x SATA 6Gb/s connectors, integrated in the Chipset

  4.      Support for RAID 0, RAID 1, and RAID 10

  ·        USB

  ·        CPU:

  1.      4 x USB 3.2 Gen 1 ports on the back panel

  Chipset:

  2.      1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support

  3.      1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

  4.      2 x USB 3.2 Gen 1 ports available through the internal USB header

  5.      2 x USB 2.0/1.1 ports available through the internal USB header

  ·        Conectores Internos I/O



  1.      1 x 24-pin ATX main power connector

  2.      1 x 8-pin ATX 12V power connector

  3.      1 x CPU fan header

  4.      2 x system fan headers

  5.      1 x addressable LED strip header

  6.      1 x RGB LED strip header

  7.      4 x SATA 6Gb/s connectors

  8.      2 x M.2 Socket 3 connectors

  9.      1 x front panel header

  10.   1 x front panel audio header

  11.   1 x speaker header

  12.   1 x USB 3.2 Gen 1 header

  13.   1 x USB 2.0/1.1 header

  14.   1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

  15.   1 x Clear CMOS jumper

  ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

  ·        Conectores Painel Traseiro



  1.      1 x DisplayPort (Note)

  2.      2 x HDMI ports (Note)

  3.      1 x USB 3.2 Gen 2 Type-A port (red)

  4.      4 x USB 3.2 Gen 1 ports

  5.      1 x USB Type-C™ port, with USB 3.2 Gen 2 support

  6.      1 x Q-Flash Plus button

  7.      1 x RJ-45 port

  8.      2 x SMA antenna connectors (2T2R)

  9.      3 x audio jacks

  (Note) Actual support may vary by CPU.

  ·        Controlador I/O



  1.      iTE^® I/O Controller Chip

  ·        Monitoramento H/W



  1.      Voltage detection

  2.      Temperature detection

  3.      Fan speed detection

  4.      Overheating warning

  5.      Fan fail warning

  6.      Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.

  ·        BIOS



  1.      1 x 128 Mbit flash

  2.      Use of licensed AMI UEFI BIOS

  3.      PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  ·        Características Exclusivas



  1.      Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  - @BIOS
  - EasyTune
  - RGB Fusion
  - Smart Backup
  - System Information Viewer

  2.      Support for Q-Flash Plus

  3.      Support for Q-Flash

  ·        Pacote de Software



  1.      Norton® Internet Security (OEM version)

  ·        Sistema Operacional



  1.      Support for Windows 11 64-bit

  2.      Support for Windows 10 64-bit

  ·        Form Factor



  1.      Mini-ITX Form Factor; 17.0cm x 17.0cm
